SWO wear ring
Dimension table

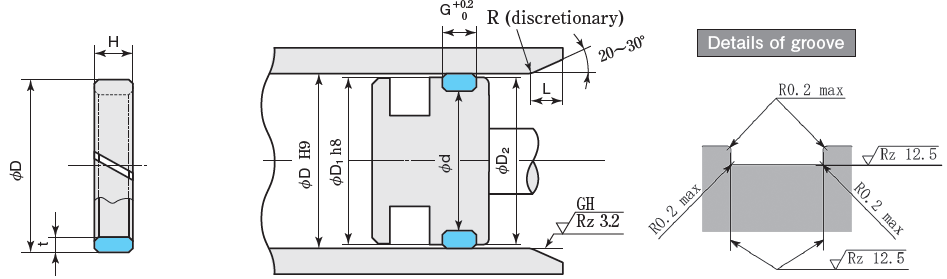

| Wear ring & Groove dimensions （Unit：mm） | Part No. | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| D | d | H | t | G | D1 | D2 | L | Standard material（PB 271） | |
| 32 | 27 | 0 -0.05 |
5.5 | 2.5 | 5.6 | 31.5 | 31 | 2 | SWO-32 |
| 40 | 35 | 5.5 | 2.5 | 5.6 | 39.5 | 39 | 2 | SWO-40 | |
| 50 | 45 | 5.5 | 2.5 | 5.6 | 49.5 | 49 | 2.5 | SWO-50 | |
| 63 | 58 | 5.5 | 2.5 | 5.6 | 62.4 | 62 | 2.5 | SWO-63 | |
| 80 | 75 | 5.5 | 2.5 | 5.6 | 79.4 | 79 | 2.5 | SWO-80 | |
| 100 | 95 | 5.5 | 2.5 | 5.6 | 99.4 | 99 | 2.5 | SWO-100 | |
| 125 | 120 | 0 -0.08 |
5.5 | 2.5 | 5.6 | 124.3 | 124 | 4 | SWO-125 |
