PNY Packings
Dimension table

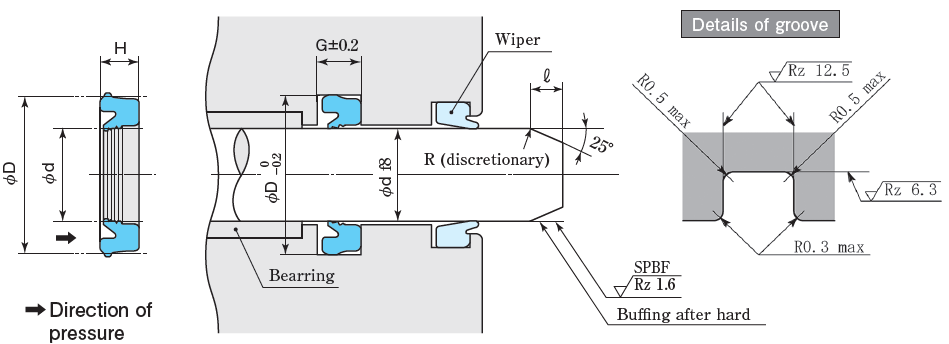

| Packings & Groove dimensions （Unit：mm） | Part No. | |||||
|---|---|---|---|---|---|---|
| d | D | H | G | # | Standard （RN 729） |
High temperature-resistant （RF 905） |
| 16 | 24 | 5.2 | 5.7 | 1.5 | PNY-16K | |
| 18 | 26 | 5.2 | 5.7 | 1.5 | PNY-18K | |
| 20 | 28 | 5.2 | 5.7 | 1.5 | PNY-20K | PNY-20F |
| 22 | 30 | 5.2 | 5.7 | 1.5 | PNY-22K | |
| 22.4 | 30 | 5.2 | 5.7 | 1.5 | PNY-22.4K | |
| 25 | 33 | 5.2 | 5.7 | 1.5 | PNY-25K | PNY-25F |
| 28 | 36 | 5.2 | 5.7 | 1.5 | PNY-28K | |
| 30 | 40 | 6.5 | 7 | 3 | PNY-30K | |
| 32 | 42 | 6.5 | 7 | 3 | PNY-32K | PNY-32F |
| 35 | 45 | 6.5 | 7 | 3 | PNY-35K | |
| 35.5 | 45.5 | 6.5 | 7 | 3 | PNY-35.5K | |
| 36 | 46 | 6.5 | 7 | 3 | PNY-36K | |
| 40 | 50 | 6.5 | 7 | 3 | PNY-40K | |
| 45 | 55 | 6.5 | 7 | 3 | PNY-45K | |
| 50 | 60 | 6.5 | 7 | 3 | PNY-50K | |
| 55 | 65 | 6.5 | 7 | 3 | PNY-55K | |
| 60 | 70 | 6.5 | 7 | 3 | PNY-60K | |
| 63 | 73 | 6.5 | 7 | 3 | PNY-63K | |
| 70 | 80 | 6.5 | 7 | 3 | PNY-70K | |
