RHU Packings

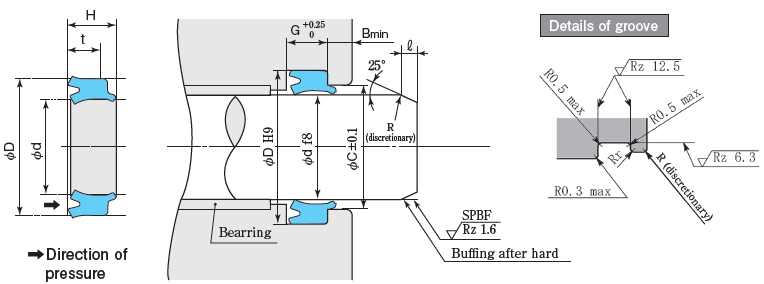

Dimension table
| Packings & Groove dimensions (Unit：mm） | Part No. | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| d | D | H | t | G | C | B | R | ℓ | Standard material（RN 906） |
| 8 | 12 | 4.5 | 3.7 | 4 | 9.6 | 2 | 0.5 | 1.5 | NHU-8 |
| 10 | 14 | 4.5 | 3.7 | 4 | 11.6 | 2 | 0.5 | 1.5 | NHU-10 |
| 12 | 16 | 4.5 | 3.7 | 4 | 13.6 | 2 | 0.5 | 1.5 | NHU-12 |
| 14 | 18 | 4.5 | 3.7 | 4 | 15.6 | 2 | 0.5 | 1.5 | NHU-14 |
| 16 | 24 | 7 | 5.7 | 6 | 19.4 | 2 | 0.6 | 2 | NHU-16 |
| 20 | 28 | 7 | 5.7 | 6 | 19.4 | 2 | 0.6 | 2 | NHU-20 |
| 25 | 33 | 7 | 5.7 | 6 | 28.4 | 2 | 0.6 | 2 | NHU-25 |
| 30 | 40 | 8 | 6.7 | 7 | 34 | 2 | 0.8 | 2.5 | NHU-30 |
